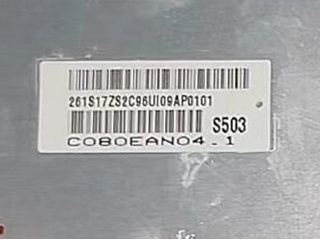

| Onderdeel nummer | C080EAN04.1 |
| Merk | AUO |
| Maat | 8.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 1280×720 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | 6S4P |
| Koppel | |
| fabrikant | AUO |
| modelnaam | C080EAN04.1 |
| scherm grootte | 8.0 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1280(RGB)×720 (WXGA) 184PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 176.64 × 99.36 (H×V) |
| overzicht (mm) | 186.5 × 117.12 (H×V×D) |
| bezel gebied (mm) | 179.55 × 105.36 (H×V) |
| behandeling | Antiglare |
| luminantie | 750 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 80/80/80/80 (Typ.)(CR≥10) |
| antwoord | 20 (Max.)(Tr+Tf) ms |
| goed zicht op | Symmetry |
| werk modus | AHVA, Normally Black, Transmissive |
| kleuren diepte | 16.7M 68% NTSC |
| tegenlicht | 6S4P WLED , 30K hours , No Driver |
| massa | 229±23g |
| gebruikt voor | Automotive Display |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| A080XN01 V1 | AUO | 8.0 | 1024×768 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| C080VW03 V0 | AUO | 8.0 | 800×480 |
| DJ080PA-01C | Innolux | 8.0 | |
| EC080SC2 | E Ink | 8.0 | |
| LA080WV4-SD03 | LG Display | 8.0 | 800×480 |
| LS800JT9001 | Innolux | 8.0 | 800×600 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
| TM080VDSP01 | Tianma | 8.0 | 1200×1920 |
| TX20D28VM2BAB | KOE | 8.0 | 800×480 |
