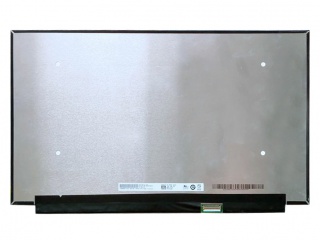

| Onderdeel nummer | B156ZAN03.5 |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | LCM , LTPS TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| fabrikant | AUO |

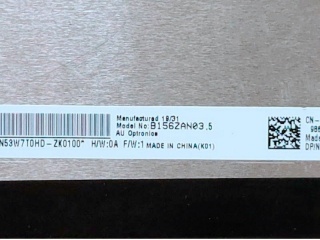

| modelnaam | B156ZAN03.5 (AUO35EB) |
| scherm grootte | 15.6 inch |
| scherm type | LCM , LTPS TFT-LCD |
| pixel nummer | 3840(RGB)×2160 (UHD) 283PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 344.218 × 193.622 (H×V) |
| overzicht (mm) | 349.22 × 214.21 × 2.6 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare |
| luminantie | 300 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| antwoord | 30 (Typ.)(Tr+Td) ms |
| goed zicht op | Symmetry |
| werk modus | AHVA, Normally Black, Transmissive |
| kleuren diepte | 16.7M 100% sRGB |
| tegenlicht | WLED , 15K hours , With LED Driver |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruikt voor | Laptop |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
