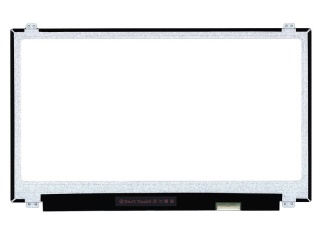

| Onderdeel nummer | B156ZAN02.2 |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | LTPS TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| merk | AUO |
| model | B156ZAN02.2 (AUO22EB) |
| diagonale maat | 15.6 inch |
| type | LTPS TFT-LCD, LCM |
| pixel formaat | 3840(RGB)×2160 [UHD] 282PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 345.6(H)×194.4(V) mm |
| omtrek afm. | 358.14(H)×224.4(V) ×3.2(D) mm |
| bezel gebied | - |
| behandeling | Antiglare |
| luminantie | 300 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 72% NTSC |
| lichtbron | WLED , 15K hours , With LED Driver |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| CLAA156WA15A | CPT | 15.6 | 1366×768 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-J08 | Samsung | 15.6 | 1366×768 |
| LTN156HT01-B01 | Samsung | 15.6 | 1920×1080 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
