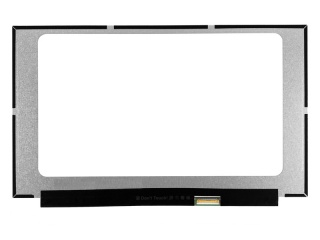

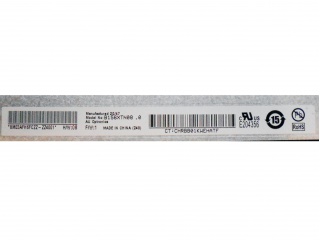

| Onderdeel nummer | B156XTN08.0 |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1366×768 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | AUO |
| paneelmodel | B156XTN08.0 (AUO20EC) |
| paneel grootte | 15.6" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1366(RGB)×768, WXGA, 100PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 344.232(W)×193.536(H) mm |
| omlijsting openen | - |
| omtrek grootte | 350.66(W)×216.15(H) ×3.2(D) mm |
| oppervlak | Glare (Haze 0%) |
| helderheid | 220 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) (TM) |
| kijk hoek | 45/45/15/35 (Min.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | 6 o'clock |
| reactietijd | 8 (Typ.)(Tr+Td) |
| kleuren weergeven | 262K 45% NTSC |
| soort lamp | WLED , 15K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | - |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| sollicitatie | Laptop |
| signaal interface | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
