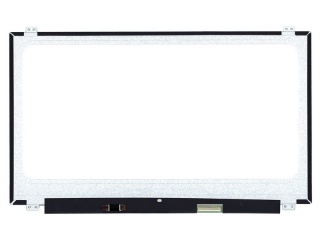

| Onderdeel nummer | B156XTN07.0 HWAA |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1366×768 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | |
| fabrikant | AUO |
| modelnaam | B156XTN07.0 HWAA (AUO70EC) |
| scherm grootte | 15.6 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1366(RGB)×768 (WXGA) 100PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 344.232 × 193.536 (H×V) |
| overzicht (mm) | 359.5 × 223.8 × 3.4 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Hard coating |
| luminantie | 200 cd/m² (Typ.) |
| contrast ratio | 500 : 1 (Typ.) (TM) |
| kijk hoek | 45/45/15/35 (Typ.)(CR≥10) |
| antwoord | 8 (Typ.)(Tr+Td) ms |
| goed zicht op | 6 o'clock |
| werk modus | TN, Normally White, Transmissive |
| kleuren diepte | 262K 45% NTSC |
| tegenlicht | WLED , 15K hours , With LED Driver |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruikt voor | Laptop |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
