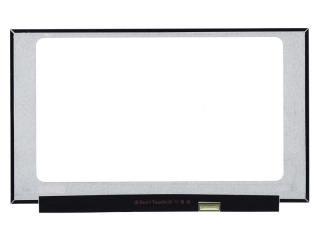

| Onderdeel nummer | B156HAN02.8 |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| fabrikant | AUO |
| scherm grootte | 15.6 inch |
| pixel nummer | 1920(RGB)×1080 (FHD) 141PPI |
| actief gebied (mm) | 344.16 × 193.59 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 250 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 262K 46% NTSC |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| vernieuwingsfrequentie | 60Hz |
| signaal type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | B156HAN02.8 (AUO28ED) |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 350.66 × 216.15 × 3.2 (H×V×D) |
| behandeling | Antiglare |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| werk modus | AHVA, Normally Black, Transmissive |
| tegenlicht | WLED , 15K hours , With LED Driver |
| gebruikt voor | Laptop |
| touch screen | Without |
