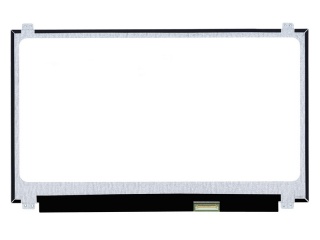

| Onderdeel nummer | B156HAN02.2 HWAA |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | AUO |
| paneel grootte | 15.6" |
| oplossing | 1920(RGB)×1080, FHD, 141PPI |
| weergavegebied | 344.16(W)×193.59(H) mm |
| omtrek grootte | 350.56(W)×223.6(H) ×3.2(D) mm |
| helderheid | 250 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 262K 46% NTSC |
| frequentie | 60Hz |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| signaal interface | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneelmodel | B156HAN02.2 HWAA (AUO22ED) |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare |
| contrast ratio | 700:1 (Typ.) (TM) |
| weergavemodus | AHVA, Normally Black, Transmissive |
| reactietijd | 25 (Typ.)(Tr+Td) |
| soort lamp | WLED , 15K hours , With LED Driver |
| touch screen | Without |
| sollicitatie | Laptop |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-D01 | Samsung | 15.6 | 1366×768 |
| TMS156WX1-01TB | Tianma | 15.6 | 1366×768 |
