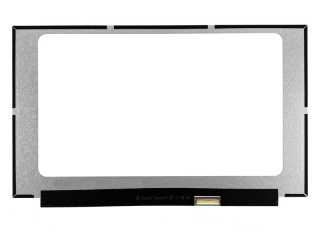

| Onderdeel nummer | B156HAK02.0 HW1B |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| fabrikant | AUO |
| modelnaam | B156HAK02.0 HW1B (AUO20ED) |
| scherm grootte | 15.6 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1920(RGB)×1080 (FHD) 141PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 344.16 × 193.59 (H×V) |
| overzicht (mm) | 350.66 × 216.15 × 3.4 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare |
| luminantie | 250 cd/m² (Typ.) |
| contrast ratio | 700 : 1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| goed zicht op | Symmetry |
| werk modus | AHVA, Normally Black, Transmissive |
| kleuren diepte | 262K 45% NTSC |
| tegenlicht | WLED , 15K hours , With LED Driver |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruikt voor | Laptop |
| vernieuwingsfrequentie | 60Hz |
| touch screen | On-Cell Touch |
| signaal type | eDP (2 Lanes) , eDP1.2 , Connector 40 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156HAK01.0 | AUO | 15.6 | 1920×1080 |
| BT156GW01 V.3 | Innolux | 15.6 | 1366×768 |
| G156HTN01.0 | AUO | 15.6 | 1920×1080 |
| LP156WF3-SLB3 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LTN156AT05-S01 | Samsung | 15.6 | 1366×768 |
| LTN156FL02-L01 | Samsung | 15.6 | 3840×2160 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
