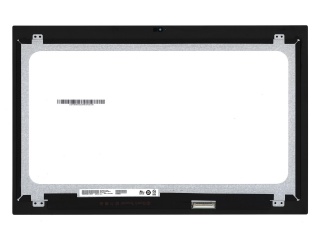

| Onderdeel nummer | B156HAB02.0 |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD, Assemb |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | AUO |
| paneelmodel | B156HAB02.0 |
| paneel grootte | 15.6" |
| paneel type | a-Si TFT-LCD, Assembly |
| oplossing | 1920(RGB)×1080, FHD, 141PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 344.16(W)×193.59(H) mm |
| omlijsting openen | - |
| helderheid | - |
| contrast ratio | 800:1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| weergavemodus | - |
| beste zicht op | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kleuren weergeven | 262K |
| soort lamp | WLED , 15K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | On-Cell Touch |
| vorm stijl | - |
| sollicitatie | Laptop |
| signaal interface | eDP (2 Lanes) Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B156HAT01.0 | AUO | 15.6 | 1920×1080 |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HTN01.1 | AUO | 15.6 | 1920×1080 |
| B156HTN03.3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| B156HW03 V0 | AUO | 15.6 | 1920×1080 |
