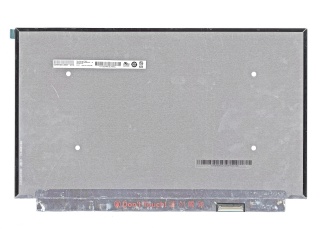

| Onderdeel nummer | B140ZAN01.0 |
| Merk | AUO |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1200:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | AUO |
| diagonale maat | 14.0 inch |
| pixel formaat | 3840(RGB)×2160 [UHD] 315PPI |
| actief gebied | 309.31(H)×173.98(V) mm |
| bezel gebied | - |
| luminantie | 400 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| ondersteunende kleur | 16.7M 72% NTSC |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| frame rate | 60Hz |
| interface-type | eDP (4 Lanes) , eDP1.4 , 40 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | B140ZAN01.0 (AUO103B) |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 315.01(H)×199.04(V) ×2.4(D) mm |
| behandeling | Antiglare, Hard coating (3H) |
| contrast ratio | 1200:1 (Typ.) (TM) |
| reactietijd | 35 (Typ.)(Tr+Td) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| lichtbron | WLED , 15K hours , With LED Driver |
| ontworpen voor | Laptop |
| aanraakpaneel | Without |
