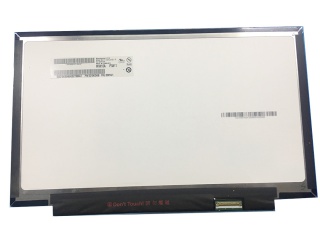

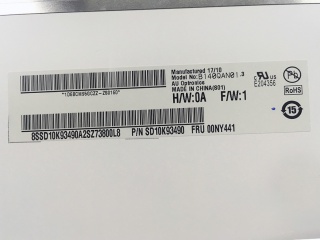

| Onderdeel nummer | B140QAN01.3 |
| Merk | AUO |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 2560×1440 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| fabrikant | AUO |
| scherm grootte | 14.0 inch |
| pixel nummer | 2560(RGB)×1440 (Quad-HD) 210PPI |
| actief gebied (mm) | 309.35 × 174.01 (H×V) |
| luminantie | - |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 16.7M |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| vernieuwingsfrequentie | 60Hz |
| signaal type | eDP (4 Lanes) Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | B140QAN01.3 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 320.4 × 198.6 × 2.6 (H×V×D) |
| contrast ratio | 700 : 1 (Typ.) (TM) |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| werk modus | AHVA, Normally Black, Transmissive |
| tegenlicht | WLED , 15K hours , With LED Driver |
| gebruikt voor | Laptop |
| touch screen | Without |
| B140HAN01.0 | AUO | 14.0 | 1920×1080 |
| B140QAN01.0 | AUO | 14.0 | 2560×1440 |
| B140QAN01.1 | AUO | 14.0 | 2560×1440 |
| B140XW02 V1 | AUO | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLA2 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLD1 | LG Display | 14.0 | 1366×768 |
| LTN140AT21-801 | Samsung | 14.0 | 1366×768 |
| N140HGE-EA1 | Innolux | 14.0 | 1920×1080 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
