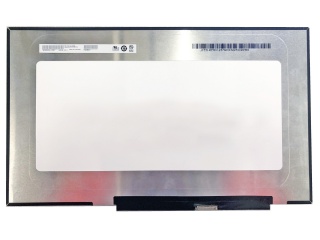

| Onderdeel nummer | B140HAN06.2 |
| Merk | AUO |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1200:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | AUO |
| paneel grootte | 14.0" |
| oplossing | 1920(RGB)×1080, FHD, 157PPI |
| weergavegebied | 309.37(W)×174.02(H) mm |
| omtrek grootte | 313.67(W)×188.87(H) ×2.1(D) mm |
| helderheid | 300 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 16.7M 100% sRGB |
| frequentie | 60Hz |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| signaal interface | eDP (2 Lanes) , eDP1.4 , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneelmodel | B140HAN06.2 (AUO623D) |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare, Hard coating (3H) |
| contrast ratio | 1200:1 (Typ.) (TM) |
| weergavemodus | AHVA, Normally Black, Transmissive |
| reactietijd | 30 (Typ.)(Tr+Td) |
| soort lamp | WLED , 15K hours , With LED Driver |
| touch screen | Without |
| sollicitatie | Laptop |
