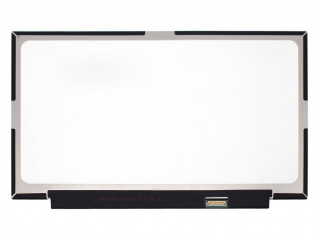

| Onderdeel nummer | B140HAN03.6 |
| Merk | AUO |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.2M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | AUO |
| diagonale maat | 14.0 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 157PPI |
| actief gebied | 309.37(H)×174.02(V) mm |
| bezel gebied | - |
| luminantie | 300 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteunende kleur | 16.2M 72% NTSC |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| frame rate | 60Hz |
| interface-type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | B140HAN03.6 (AUO363D) |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 315.1(H)×195.65(V) ×2.4(D) mm |
| behandeling | Glare (Haze 0%) |
| contrast ratio | 800:1 (Typ.) (TM) |
| reactietijd | 25 (Typ.)(Tr+Td) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| lichtbron | WLED , 15K hours , With LED Driver |
| ontworpen voor | Laptop |
| aanraakpaneel | Without |
| B140HAN01.0 | AUO | 14.0 | 1920×1080 |
| B140HAN01.1 | AUO | 14.0 | 1920×1080 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| B140HAN01.3 | AUO | 14.0 | 1920×1080 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| B140HTN01.1 | AUO | 14.0 | 1920×1080 |
| B140HTN01.3 | AUO | 14.0 | 1920×1080 |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
