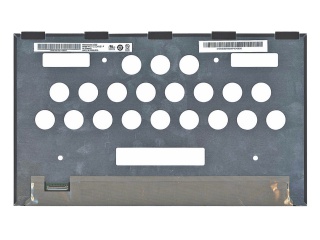

| Onderdeel nummer | B133ZAN01.0 |
| Merk | AUO |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | LTPS TFT-LCD, LCM |
| Helderheid | |
| CR | 1800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | AUO |
| model | B133ZAN01.0 |
| diagonale maat | 13.3 inch |
| type | LTPS TFT-LCD, LCM |
| pixel formaat | 3840(RGB)×2160 [UHD] 332PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 293.76(H)×165.24(V) mm |
| omtrek afm. | 298.96(H)×176.19(V) ×4.71(D) mm |
| bezel gebied | - |
| behandeling | Glare (Haze 0%) |
| luminantie | 400 cd/m² (Typ.) |
| contrast ratio | 1800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 30 (Typ.)(Tr+Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 72% NTSC |
| lichtbron | WLED , With LED Driver |
| vorm stijl | Slim (PCBA Bent, T≤3.0mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B133XTN01.6 HW1A | AUO | 13.3 | 1366×768 |
| B133XW01 V7 | AUO | 13.3 | 1366×768 |
| LP133WF2-SPA1 | LG Display | 13.3 | 1920×1080 |
| LP133WH1-TLB1 | LG Display | 13.3 | 1366×768 |
| LP133X3 | LG Display | 13.3 | 1024×768 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LTN133AT23-X01 | Samsung | 13.3 | 1366×768 |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| N133BGE-L41 | Innolux | 13.3 | 1366×768 |
| NV133FHM-N52 | BOE | 13.3 | 1920×1080 |
