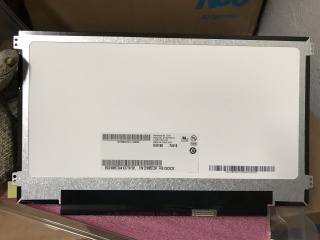

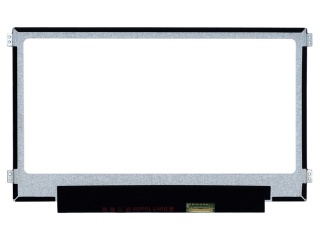

| Onderdeel nummer | B116XTN02.5 |
| Merk | AUO |
| Maat | 11.6 |
| Sollicitatie | Laptop Netbook PC |
| Oplossing | 1366×768 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 400:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| fabrikant | AUO |
| scherm grootte | 11.6 inch |
| pixel nummer | 1366(RGB)×768 (WXGA) 135PPI |
| actief gebied (mm) | 256.125 × 144 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 250 cd/m² (Typ.) |
| kijk hoek | 45/45/15/35 (Typ.)(CR≥10) |
| goed zicht op | 6 o'clock |
| kleuren diepte | 262K 45% NTSC |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| vernieuwingsfrequentie | 60Hz |
| signaal type | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | B116XTN02.5 (AUO255C) |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 278 × 168 × 3 (H×V×D) |
| behandeling | Antiglare |
| contrast ratio | 400 : 1 (Typ.) (TM) |
| antwoord | 8 (Typ.)(Tr+Td) ms |
| werk modus | TN, Normally White, Transmissive |
| tegenlicht | WLED , 15K hours , With LED Driver |
| gebruikt voor | Laptop Netbook PC |
| touch screen | Without |
