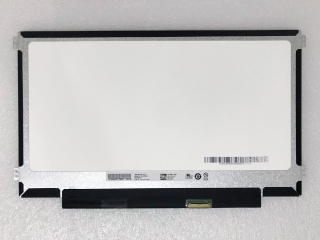

| Onderdeel nummer | B116XTN02.3 HW2G |
| Merk | AUO |
| Maat | 11.6 |
| Sollicitatie | Laptop Netbook PC |
| Oplossing | 1366×768 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 400:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | AUO |
| diagonale maat | 11.6 inch |
| pixel formaat | 1366(RGB)×768 [WXGA] 135PPI |
| actief gebied | 256.125(H)×144(V) mm |
| bezel gebied | - |
| luminantie | 220 cd/m² (Typ.) |
| richting bekijken | 6 o'clock |
| kijk hoek | 45/45/15/35 (Typ.)(CR≥10) |
| ondersteunende kleur | 262K 45% NTSC |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| frame rate | 60Hz |
| interface-type | eDP (2 Lanes) , 30 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | B116XTN02.3 HW2G |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 278(H)×168(V) ×3(D) mm |
| behandeling | Hard coating (3H) |
| contrast ratio | 400:1 (Typ.) (TM) |
| reactietijd | 8 (Typ.)(Tr+Td) |
| bedrijfsmodus | TN, Normally White, Transmissive |
| lichtbron | WLED , 15K hours , With LED Driver |
| ontworpen voor | Laptop Netbook PC |
| aanraakpaneel | Without |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW4A | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
| LP116WH2-TLN1 | LG Display | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
