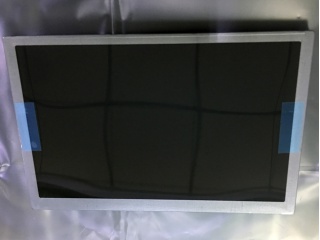

| Onderdeel nummer | AT070MP11 |
| Merk | Mitsubishi |
| Maat | 7.0 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 800×480 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| fabrikant | Mitsubishi |
| modelnaam | AT070MP11 |
| scherm grootte | 7.0 inch |
| scherm type | LCM , a-Si TFT-LCD |
| pixel nummer | 800(RGB)×480 (WVGA) 133PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 152.4 × 91.44 (H×V) |
| overzicht (mm) | 169.8 × 109.7 × 9.4 (H×V×D) |
| bezel gebied (mm) | 154.4 × 93.5 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 1300 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| antwoord | 4/12 (Typ.)(Tr/Td) ms |
| goed zicht op | Symmetry |
| werk modus | SWV, Normally Black, Transmissive |
| kleuren diepte | 262K/16.7M 50% NTSC |
| tegenlicht | WLED , 100K hours , No Driver |
| massa | 200g |
| gebruikt voor | Industrial Outdoor High Brightness Automotive Display |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
