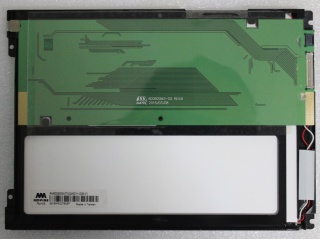

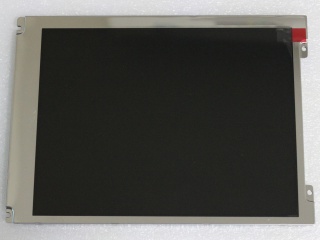

| Onderdeel nummer | AM-800600M3TNQW-01H-G |
| Merk | AMPIRE |
| Maat | 8.4 |
| Sollicitatie | Industrial |
| Oplossing | 800×600 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 262K |
| Tegenlicht | 12S4P |
| Koppel | LVDS |
| fabrikant | AMPIRE |
| modelnaam | AM-800600M3TNQW-01H-G |
| scherm grootte | 8.4 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 800(RGB)×600 (SVGA) 119PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 170.4 × 127.8 (H×V) |
| overzicht (mm) | 203 × 145.5 × 8.3 (H×V×D) |
| bezel gebied (mm) | 174.15 × 131.2 (H×V) |
| behandeling | - |
| luminantie | 450 cd/m² (Typ.) |
| contrast ratio | 600 : 1 (Typ.) (TM) |
| kijk hoek | 75/75/60/70 (Typ.)(CR≥10) |
| antwoord | 8 (Typ.)(Tr+Td) ms |
| goed zicht op | - |
| werk modus | TN, Normally White, Transmissive |
| kleuren diepte | 262K |
| tegenlicht | 12S4P WLED , 50K hours , With LED Driver |
| massa | 280g |
| gebruikt voor | Industrial |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | LVDS (1 ch, 6-bit) , Connector 20 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
