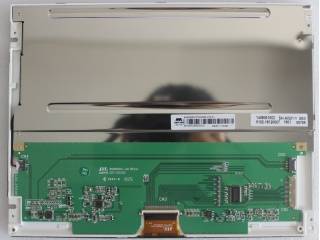

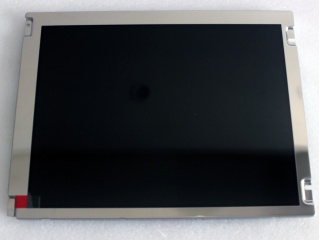

| Onderdeel nummer | AM-800600K2TMQW-04H |
| Merk | AMPIRE |
| Maat | 10.4 |
| Sollicitatie | Industrial |
| Oplossing | 800×600 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | LVDS |
| paneel merk | AMPIRE |
| paneel grootte | 10.4" |
| oplossing | 800(RGB)×600, SVGA, 96PPI |
| weergavegebied | 211.2(W)×158.4(H) mm |
| omtrek grootte | 243(W)×185.6(H) mm |
| helderheid | 500 cd/m² (Typ.) |
| kijk hoek | 70/70/50/60 (Typ.)(CR≥10) |
| beste zicht op | 6 o'clock |
| kleuren weergeven | 262K 50% NTSC |
| frequentie | 60Hz |
| paneel gewicht | - |
| signaal interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -35 ~ 85 °C |
| paneelmodel | AM-800600K2TMQW-04H |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | 214.8(W)×162.7(H) mm |
| oppervlak | - |
| contrast ratio | 500:1 (Typ.) (TM) |
| weergavemodus | TN, Normally White, Transmissive |
| reactietijd | 5/15 (Typ.)(Tr/Td) |
| soort lamp | WLED , 30K hours , With LED Driver |
| touch screen | Without |
| sollicitatie | Industrial |
