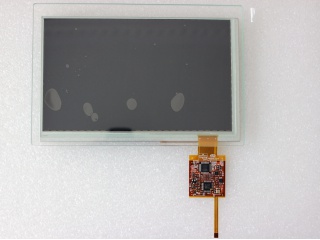

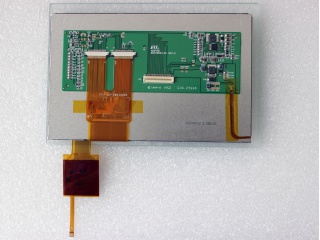

| Onderdeel nummer | AM-800480RSTMQW-TBCH |
| Merk | AMPIRE |
| Maat | 7.0 |
| Sollicitatie | Industrial |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 400:1 |
| Kleuren | 262K |
| Tegenlicht | 3S10P |
| Koppel | LVDS |
| paneel merk | AMPIRE |
| paneelmodel | AM-800480RSTMQW-TBCH |
| paneel grootte | 7.0" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 800(RGB)×480, WVGA, 133PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 152.4(W)×91.44(H) mm |
| omlijsting openen | 155.3(W)×94.3(H) mm |
| omtrek grootte | 174(W)×118(H) ×11.99(D) mm |
| oppervlak | - |
| helderheid | 425 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) (TM) |
| kijk hoek | 70/70/70/60 (Typ.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | 6 o'clock |
| reactietijd | 5/11 (Typ.)(Tr/Td) |
| kleuren weergeven | 262K |
| soort lamp | 3S10P WLED , 40K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | PCAP |
| paneel gewicht | TBD |
| sollicitatie | Industrial |
| signaal interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
