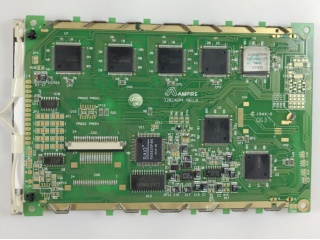

| Onderdeel nummer | AM-800480R2TMQW-U0H |
| Merk | AMPIRE |
| Maat | 7.0 |
| Sollicitatie | Industrial |
| Oplossing | 800×480 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 250:1 |
| Kleuren | 65K |
| Tegenlicht | WLED |
| Koppel | UART |
| fabrikant | AMPIRE |
| modelnaam | AM-800480R2TMQW-U0H |
| scherm grootte | 7.0 inch |
| scherm type | LCM , a-Si TFT-LCD |
| pixel nummer | 800(RGB)×480 (WVGA) 133PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 152.4 × 91.44 (H×V) |
| overzicht (mm) | 178.5 × 110 × 20.4 (H×V×D) |
| bezel gebied (mm) | 155.3 × 94.3 (H×V) |
| behandeling | - |
| luminantie | 400 cd/m² (Typ.) |
| contrast ratio | 250 : 1 (Typ.) (TM) |
| kijk hoek | 70/70/60/60 (Typ.)(CR≥10) |
| antwoord | 50 (Typ.)(Tr+Td) ms |
| goed zicht op | - |
| werk modus | TN, Normally White, Transmissive |
| kleuren diepte | 65K 48% NTSC |
| tegenlicht | WLED , With LED Driver |
| massa | - |
| gebruikt voor | Industrial |
| vernieuwingsfrequentie | - |
| touch screen | Without |
| signaal type | UART , 8 pins Connector |
| spanningsvoorziening | 4.6/26.0V (Min./Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
