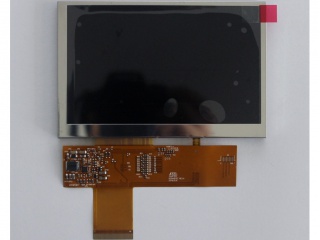

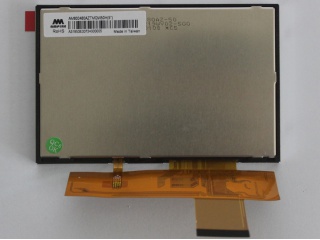

| Onderdeel nummer | AM-800480AZTMQW-50H |
| Merk | AMPIRE |
| Maat | 5.0 |
| Sollicitatie | Industrial |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 16.7M |
| Tegenlicht | 3S6P |
| Koppel | |
| paneel merk | AMPIRE |
| paneel grootte | 5.0" |
| oplossing | 800(RGB)×480, WVGA, 188PPI |
| weergavegebied | 108(W)×64.8(H) mm |
| omtrek grootte | 119.7(W)×78(H) ×6.1(D) mm |
| helderheid | 1000 cd/m² (Typ.) |
| kijk hoek | 75/75/70/60 (Typ.)(CR≥10) |
| beste zicht op | - |
| kleuren weergeven | 16.7M 47% NTSC |
| frequentie | 60Hz |
| gewicht | - |
| paneelmodel | AM-800480AZTMQW-50H |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare |
| contrast ratio | 600:1 (Typ.) (TM) |
| weergavemodus | TN, Normally White, Transmissive |
| reactietijd | 2/6 (Typ.)(Tr/Td) |
| soort lamp | 3S6P WLED , 50K hours , Without Driver |
| touch screen | Without |
| sollicitatie | Industrial |
| AM-800480-050D | Other | 5.0 | 800×480 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-W0H | AMPIRE | 5.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
