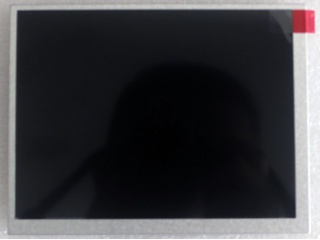

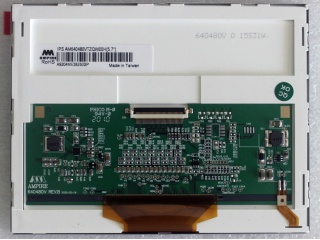

| Onderdeel nummer | AM-640480VTZQW-00H |
| Merk | AMPIRE |
| Maat | 5.7 |
| Sollicitatie | Industrial |
| Oplossing | 640×480 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1200:1 |
| Kleuren | 262K |
| Tegenlicht | 4S7P |
| Koppel | CMOS |
| paneel merk | AMPIRE |
| paneel grootte | 5.7" |
| oplossing | 640(RGB)×480, VGA, 141PPI |
| weergavegebied | 115.2(W)×86.4(H) mm |
| omtrek grootte | 127(W)×98.43(H) ×6.9(D) mm |
| helderheid | 500 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 262K 63% NTSC |
| frequentie | 60Hz |
| paneel gewicht | - |
| signaal interface | CMOS (1 ch, 6-bit) , 40 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| paneelmodel | AM-640480VTZQW-00H |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | 118.0(W)×89.2(H) mm |
| oppervlak | - |
| contrast ratio | 1200:1 (Typ.) (TM) |
| weergavemodus | IPS, Normally Black, Transmissive |
| reactietijd | 30 (Typ.)(Tr+Td) |
| soort lamp | 4S7P WLED , 50K hours , With LED Driver |
| touch screen | Without |
| sollicitatie | Industrial |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-A0H | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| AM-640480GFTNQW-T01H-L | AMPIRE | 5.7 | 640×480 |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
