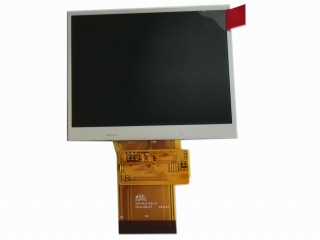

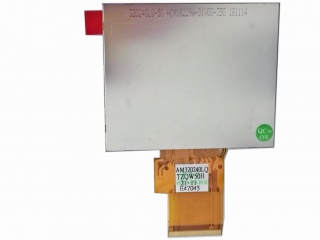

| Onderdeel nummer | AM-320240LQTZQW-50H |
| Merk | AMPIRE |
| Maat | 3.5 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 320×240 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | 6S2P |
| Koppel | Parallel |
| paneel merk | AMPIRE |
| paneel grootte | 3.5" |
| oplossing | 320(RGB)×240, QVGA, 115PPI |
| weergavegebied | 70.08(W)×52.56(H) mm |
| omtrek grootte | 76.9(W)×63.9(H) ×3.45(D) mm |
| helderheid | 800 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 16.7M 60% NTSC |
| frequentie | 60Hz |
| paneel gewicht | - |
| signaal interface | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| paneelmodel | AM-320240LQTZQW-50H |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | 72.88(W)×54.94(H) mm |
| oppervlak | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| weergavemodus | Normally Black, Transmissive |
| reactietijd | 30 (Typ.)(Tr+Td) |
| soort lamp | 6S2P WLED , 36K hours , Without Driver |
| touch screen | Without |
| sollicitatie | Industrial Outdoor High Brightness Instruments & Meters |
