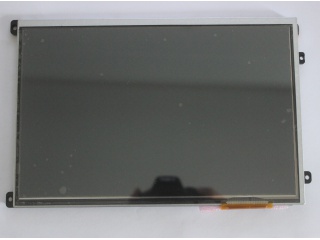

| Onderdeel nummer | AM-19201200CTZQW-T01 |
| Merk | AMPIRE |
| Maat | 10.1 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 1920×1200 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| merk | AMPIRE |
| model | AM-19201200CTZQW-T01 |
| diagonale maat | 10.1 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1200 [WUXGA] 225PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 216.576(H)×135.36(V) mm |
| omtrek afm. | 244.8(H)×155.3(V) ×8.01(D) mm |
| luminantie | 850 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 49% NTSC |
| lichtbron | WLED [7S6P] , 50K hours , W/O Driver |
| gewicht | - |
| ontworpen voor | Industrial Outdoor High Brightness |
| frame rate | 60Hz |
| aanraakpaneel | PCAP |
| Operating Temperature: -20 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C |
