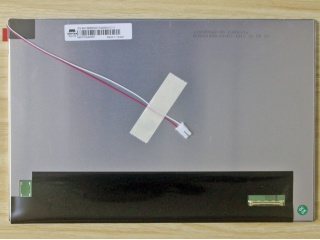

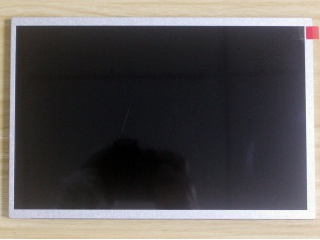

| Onderdeel nummer | AM-1280800W2TZQW-00H |
| Merk | AMPIRE |
| Maat | 10.1 |
| Sollicitatie | Industrial |
| Oplossing | 1280×800 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | 7S4P |
| Koppel | LVDS |
| fabrikant | AMPIRE |
| scherm grootte | 10.1 inch |
| pixel nummer | 1280(RGB)×800 (WXGA) 149PPI |
| actief gebied (mm) | 216.96 × 135.6 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 1000 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 16.7M 44% NTSC |
| massa | 160g (Max.) |
| vernieuwingsfrequentie | 60Hz |
| signaal type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| modelnaam | AM-1280800W2TZQW-00H |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 231 × 154.4 × 7.9 (H×V×D) |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| werk modus | ADS, Normally Black, Transmissive |
| tegenlicht | 7S4P WLED , 50K hours , No Driver |
| gebruikt voor | Industrial |
| touch screen | Without |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-T48H | AMPIRE | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| LP101WH2-TLA2 | LG Display | 10.1 | 1366×768 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
