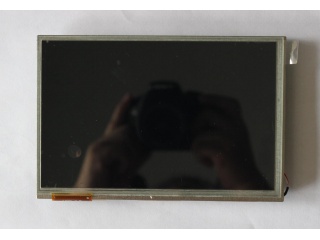

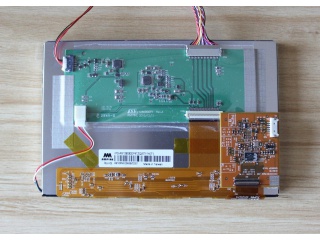

| Onderdeel nummer | AM-1280800P4TZQW-T11H |
| Merk | AMPIRE |
| Maat | 7.0 |
| Sollicitatie | Industrial |
| Oplossing | 1280×800 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | 6S4P |
| Koppel | |
| paneel merk | AMPIRE |
| paneel grootte | 7.0" |
| oplossing | 1280(RGB)×800, WXGA, 217PPI |
| weergavegebied | 149.76(W)×93.6(H) mm |
| omtrek grootte | 162.3(W)×107.9(H) ×11.8(D) mm |
| helderheid | 850 cd/m² (Typ.) |
| kijk hoek | 80/80/80/80 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 16.7M 50% NTSC |
| frequentie | 60Hz |
| gewicht | - |
| paneelmodel | AM-1280800P4TZQW-T11H |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | 152.76(W)×96.6(H) mm |
| oppervlak | - |
| contrast ratio | 800:1 (Typ.) (TM) |
| weergavemodus | SFT, Normally Black, Transmissive |
| reactietijd | 35 (Typ.)(Tr+Td) |
| soort lamp | 6S4P WLED , 50K hours , With LED Driver |
| touch screen | PCAP |
| sollicitatie | Industrial |
