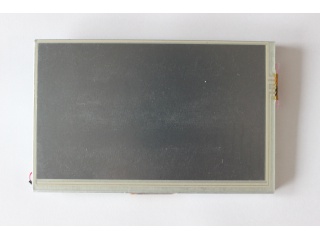

| Onderdeel nummer | AM-1024600K5TMQW-T00H |
| Merk | AMPIRE |
| Maat | 7.0 |
| Sollicitatie | Industrial |
| Oplossing | 1024×600 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 16.7M |
| Tegenlicht | 5S3P |
| Koppel | LVDS |
| fabrikant | AMPIRE |
| modelnaam | AM-1024600K5TMQW-T00H |
| scherm grootte | 7.0 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1024(RGB)×600 (WSVGA) 169PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 153.6 × 90 (H×V) |
| overzicht (mm) | 165.5 × 103 × 11.02 (H×V×D) |
| luminantie | 400 cd/m² (Typ.) |
| contrast ratio | 700 : 1 (Typ.) (TM) |
| kijk hoek | 75/75/70/75 (Typ.)(CR≥10) |
| antwoord | 20/20 (Typ.)(Tr/Td) ms |
| goed zicht op | - |
| werk modus | TN, Normally White, Transmissive |
| kleuren diepte | 16.7M |
| tegenlicht | 5S3P WLED , 30K hours , With LED Driver |
| massa | TBD |
| gebruikt voor | Industrial |
| vernieuwingsfrequentie | 60Hz |
| touch screen | 4-wire Resistive Touch |
| signaal type | LVDS (1 ch, 8-bit) , Connector 20 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
