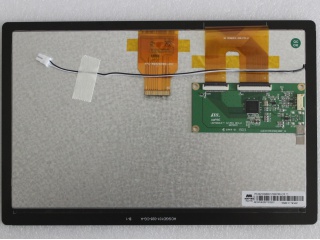

| Onderdeel nummer | AM-1024600ITZQW-T00H |
| Merk | AMPIRE |
| Maat | 10.1 |
| Sollicitatie | Industrial |
| Oplossing | 1024×600 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| fabrikant | AMPIRE |
| scherm grootte | 10.1 inch |
| pixel nummer | 1024(RGB)×600 (WSVGA) 117PPI |
| actief gebied (mm) | 222.72 × 125.28 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 465 cd/m² (Typ.) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 262K/16.7M 70% NTSC |
| massa | - |
| vernieuwingsfrequentie | 60Hz |
| signaal type | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| spanningsvoorziening | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| modelnaam | AM-1024600ITZQW-T00H |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 255 × 165.8 (H×V×D) |
| behandeling | Antiglare, Hard coating |
| contrast ratio | 500 : 1 (Typ.) (TM) |
| antwoord | 12/28 (Typ.)(Tr/Td) ms |
| werk modus | IPS, Normally Black, Transmissive |
| tegenlicht | WLED , 50K hours , No Driver |
| gebruikt voor | Industrial |
| touch screen | PCAP |
