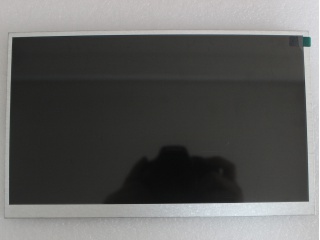

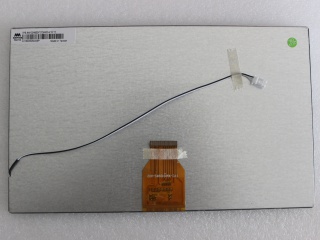

| Onderdeel nummer | AM-1024600ITZQW-00H |
| Merk | AMPIRE |
| Maat | 10.1 |
| Sollicitatie | Industrial |
| Oplossing | 1024×600 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| paneel merk | AMPIRE |
| paneelmodel | AM-1024600ITZQW-00H |
| paneel grootte | 10.1" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1024(RGB)×600, WSVGA, 117PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 222.72(W)×125.28(H) mm |
| omlijsting openen | - |
| omtrek grootte | 234.9(W)×143(H) ×4.9(D) mm |
| oppervlak | Antiglare, Hard coating |
| helderheid | 550 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| weergavemodus | IPS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 12/28 (Typ.)(Tr/Td) |
| kleuren weergeven | 262K/16.7M 70% NTSC |
| soort lamp | WLED , 50K hours , Without Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | - |
| sollicitatie | Industrial |
| signaal interface | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| ingangsspanning | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
