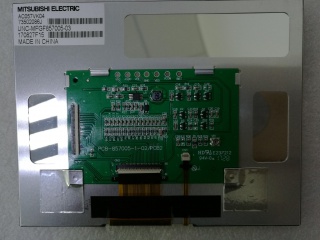

| Onderdeel nummer | AC057VK04 |
| Merk | Mitsubishi |
| Maat | 5.7 |
| Sollicitatie | Industrial |
| Oplossing | 640×480 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | Parallel |
| paneel merk | Mitsubishi |
| paneelmodel | AC057VK04 |
| paneel grootte | 5.7" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 640(RGB)×480, VGA, 141PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 115.2(W)×86.4(H) mm |
| omlijsting openen | 118.1(W)×89.3(H) mm |
| omtrek grootte | 127(W)×100(H) mm |
| oppervlak | Antiglare, Hard coating (2H) |
| helderheid | 520 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) (TM) |
| kijk hoek | 80/80/80/60 (Typ.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | 6 o'clock |
| reactietijd | 4/12 (Typ.)(Tr/Td) |
| kleuren weergeven | 262K 48% NTSC |
| soort lamp | WLED , 50K hours , Without Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | 90.0g |
| sollicitatie | Industrial |
| signaal interface | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
