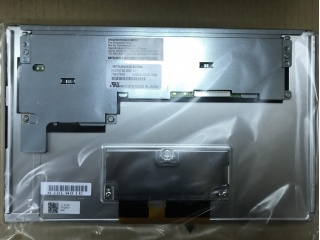

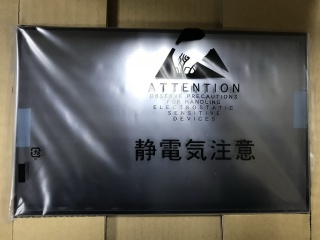

| Onderdeel nummer | AA106TA01DDE11 |
| Merk | Mitsubishi |
| Maat | 10.6 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 1280×768 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | WLED |
| Koppel | |
| merk | Mitsubishi |
| model | AA106TA01DDE11 |
| diagonale maat | 10.6 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1280(RGB)×768 [WXGA] 140PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 231.36(H)×138.816(V) mm |
| omtrek afm. | 250(H)×175(V) ×15.5(D) mm |
| bezel gebied | - |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 800 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 12/12 (Typ.)(Tr/Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | SWV, Normally Black, Transmissive |
| ondersteunende kleur | 262K/16.7M 50% NTSC |
| lichtbron | WLED , 100K hours , With LED Driver |
| gewicht | 670g (Typ.) |
| ontworpen voor | Industrial Outdoor High Brightness |
| frame rate | 60Hz |
| aanraakpaneel | PCAP |
| Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AA106TA01 | Mitsubishi | 10.6 | 1280×768 |
| LQ106K1LA01C | SHARP | 10.6 | 1280×768 |
| LQ106K1LA02 | SHARP | 10.6 | 1280×768 |
| LQ106K1LA05 | SHARP | 10.6 | 1280×768 |
| LTD106EWNN | TOSHIBA | 10.6 | 1280×768 |
| LTL106AL01-001 | Samsung | 10.6 | 1366×768 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| LTN106W1-L01 | Samsung | 10.6 | 1280×768 |
| LTN106W2-L01 | Samsung | 10.6 | 1280×768 |
