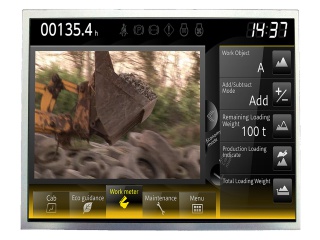

| Onderdeel nummer | AA104XN01 |
| Merk | Mitsubishi |
| Maat | 10.4 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 1024×768 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| fabrikant | Mitsubishi |
| modelnaam | AA104XN01 |
| scherm grootte | 10.4 inch |
| scherm type | LCM , a-Si TFT-LCD |
| pixel nummer | 1024(RGB)×768 (XGA) 123PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 211.2 × 158.4 (H×V) |
| overzicht (mm) | 230 × 180.2 (H×V×D) |
| luminantie | 1300 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 88/88/88/88 (Typ.)(CR≥10) |
| antwoord | - |
| goed zicht op | Symmetry |
| werk modus | SWV, Normally Black |
| kleuren diepte | 262K/16.7M 70% NTSC |
| tegenlicht | WLED , 100K hours , With LED Driver |
| massa | - |
| gebruikt voor | Industrial Outdoor High Brightness |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | LVDS (1 ch, 6/8-bit) |
| max. waarderingen | Storage Temp.: -40 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
