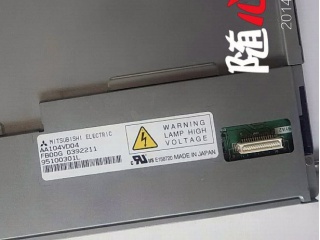

| Onderdeel nummer | AA104VD04 |
| Merk | Mitsubishi |
| Maat | 10.4 |
| Sollicitatie | Industrial |
| Oplossing | 640×480 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 262K |
| Tegenlicht | - |
| Koppel | CMOS |
| paneel merk | Mitsubishi |
| paneel grootte | 10.4" |
| oplossing | 640(RGB)×480, VGA, 76PPI |
| weergavegebied | 211.2(W)×158.4(H) mm |
| helderheid | - |
| kijk hoek | 70/70/65/65 (Typ.)(CR≥10) |
| beste zicht op | 6 o'clock |
| kleuren weergeven | 262K 40% NTSC |
| frequentie | 60Hz |
| paneel gewicht | 600g (Typ.) |
| signaal interface | CMOS (1 ch, 6-bit) , 31 pins Connector |
| ingangsspanning | 3.3V (Typ.)(VCC) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| paneelmodel | AA104VD04 |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| contrast ratio | 600:1 (Typ.) (TM) |
| weergavemodus | TN, Normally White, Transmissive |
| reactietijd | 4/12 (Typ.)(Tr/Td) |
| soort lamp | |
| touch screen | Without |
| sollicitatie | Industrial |
